Stage 1 Remap Before and After — 1.0 TSI 2nd Gear Pull Data and Real Ownership Numbers

Numbers on a dyno sheet tell one part of the story. What actually happens when you’re in the seat, in 2nd gear, at 20kmph, with 70% throttle on a Quantum Red stage 1 remap, that’s the part most articles skip entirely.

The car is a 1.0 TSI. The data is specific to this engine. The decision framework at the end applies to any modern turbocharged car you’re considering remapping.

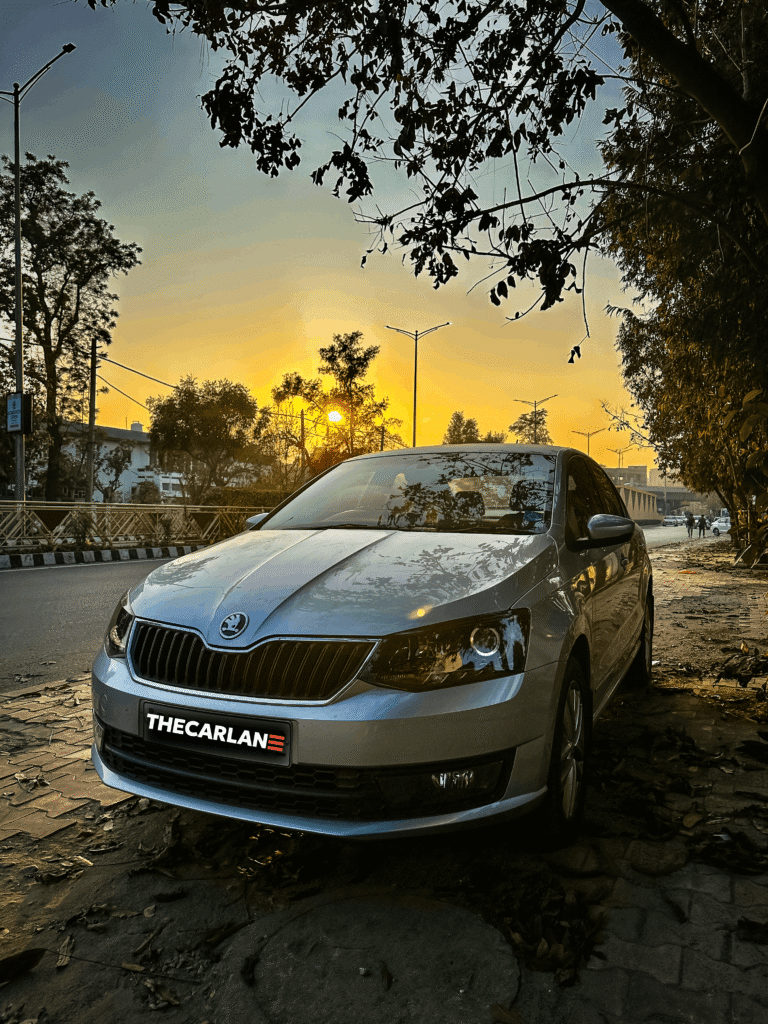

My 1.0 TSI Skoda Rapid has been running the Quantum Red performance map. Not the economy map, a deliberate choice from day one. This is a dedicated performance-focused tune, which means Quantum has prioritised boost targets and torque delivery over fuel saving. The tradeoff is real, fuel economy takes a hit but what you get in return is a car that feels fundamentally different to drive.

For the full ownership picture of this engine across 51,000km — stock reliability, real world fuel economy, and the honest long term verdict — read the complete 1.0 TSI Engine Review.

Stage 1 Remap Before and After — 1.0 TSI Numbers

Term	Stock 1.0 TSI	Quantum Red Stage 1
Peak Torque	175Nm	~220-230Nm (estimated)
Boost Builds	~2000 RPM	~1800 RPM
Peak Boost RPM	~2500 RPM	~2000-2100 RPM
Boost Held Until	~3500 RPM	~5000 RPM

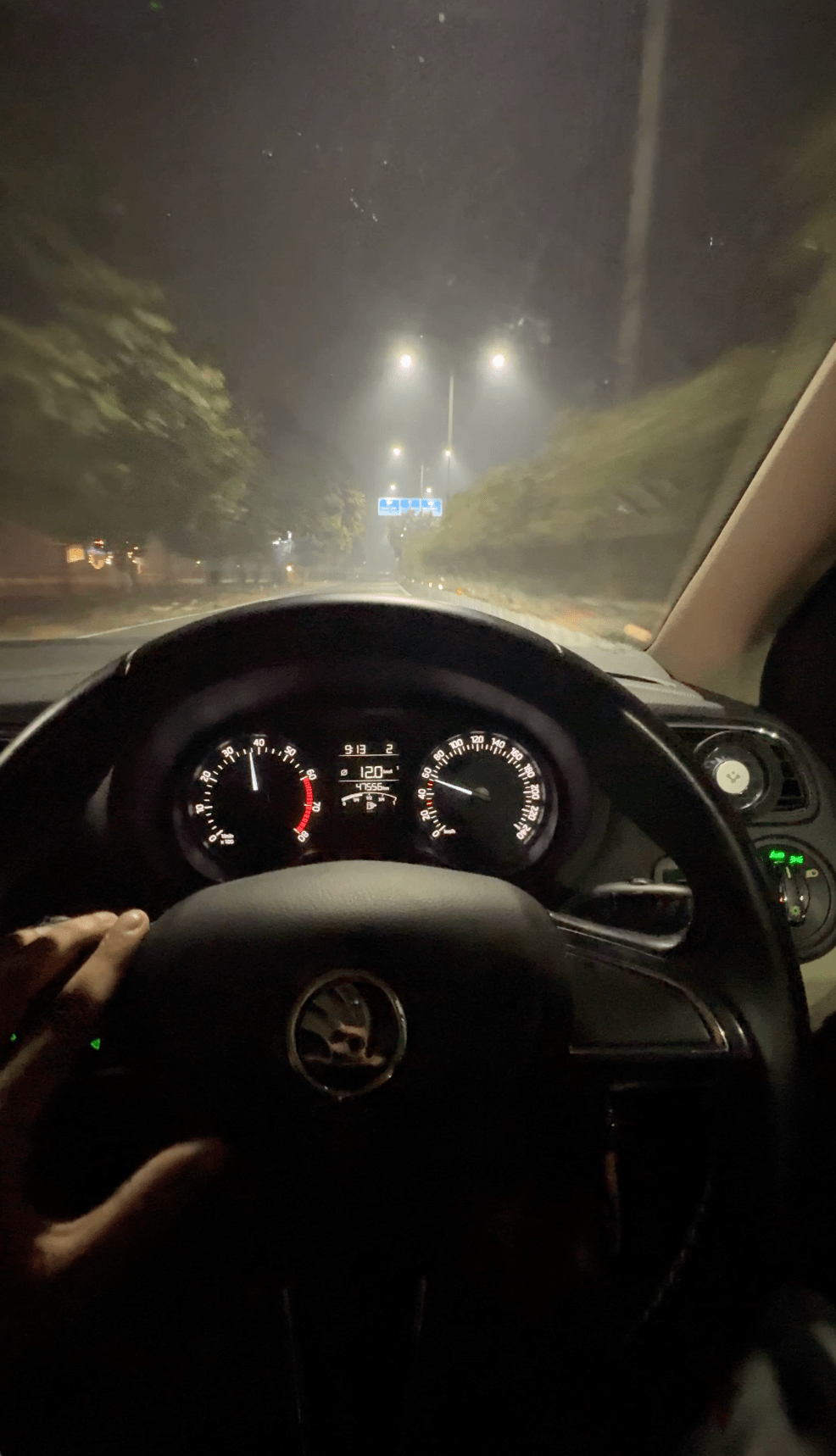

Here’s what that boost delivery looks like in real time — 2nd gear, 20-80kmph, 70% throttle, Quantum Red map.

Based on personal experience only — full disclaimer below

Why 2nd Gear From 20kmph is the Real Test

Tuners and enthusiasts use the 2nd gear pull from low speed as the standard performance benchmark because it captures the complete torque delivery picture in one sweep. You’re starting below peak boost, you’re forcing the turbo to spool from near-idle, and you’re holding a single gear long enough to feel exactly where power builds, where it peaks, and whether it holds or falls away.

It’s also the real-world scenario that matters most, the overtake, the gap in traffic, the moment you need the car to respond immediately without a downshift.

Stock, the 1.0 TSI comes with 175Nm of torque from the factory. That’s genuinely respectable for a three-cylinder engine of this size, and in stock form this car was never slow. The 0-100 figures are competitive. But competitive on paper and alive in your hands are two different things, and that gap is exactly what the Quantum Red map closes.

What Happens at 1800 RPM — The Build

Boost starts building at 1800 RPM on the Quantum Red map.

The feeling at this point is not a sudden hit, it’s more like the car recognising what you’re asking and preparing to deliver it fully. Eager is the right word. There’s a distinct sense of potential energy gathering, like the engine is winding up rather than just spinning. If you’ve driven the stock car at the same point in the rev range you’ll notice the difference immediately, stock feels composed and adequate, remapped feels like something is about to happen.

This build phase is part of what makes the Quantum Red map feel different from economy-focused tunes. The boost curve is sharpened specifically for responsiveness, not efficiency. You feel that from the moment boost starts moving.

2000-2100 RPM — Peak Boost Unlock

This is the moment.

At 2000-2100 RPM the map unlocks peak boost and the car does something that stock calibration never allows, it pushes you back into the seat with genuine intent. Not violently, not nervously, but with a planted, confident surge that holds all the way through the torque range. The car feels quick and completely alive in a way that’s difficult to describe without having experienced it.

At 70% throttle.

That detail matters more than almost anything else in this article. This is not a full-throttle heroics story. This is 70% throttle on a public road where there wasn’t enough space to reach 100kmph before needing to brake. The remap is delivering this experience with headroom still remaining. At 100% throttle in 2nd and 3rd gear the car simply takes off, that’s the only way to describe it accurately.

The stock car at the same throttle position and the same RPM point feels like it’s working. The remapped car feels like it’s performing. That distinction is the entire argument for the Quantum Red map in one sentence.

Here’s what the stage 1 remap power gains look like in numbers compared to stock, and what they feel like in the seat.

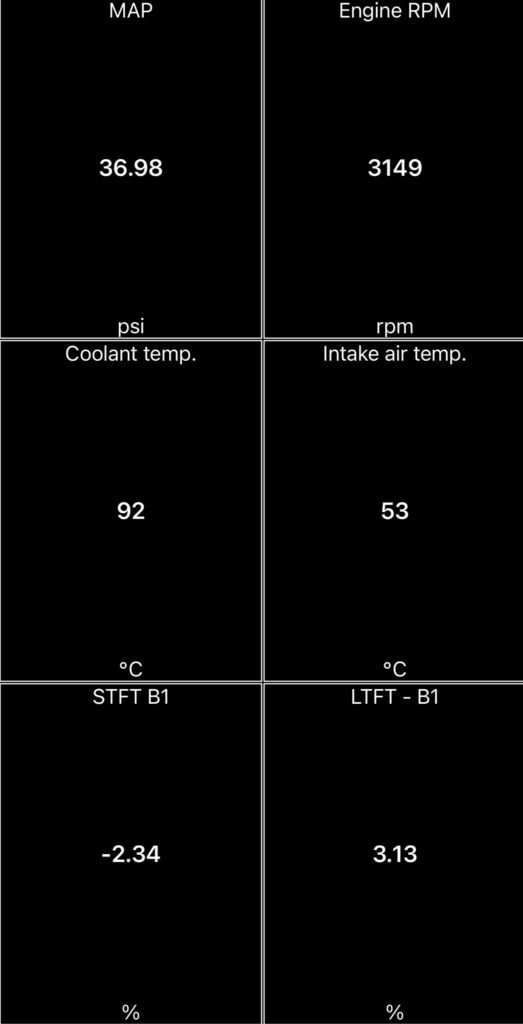

3000-5000 RPM — Where the Map Holds

Peak boost stays on from 2000 RPM all the way to 5000 RPM on this map. What that means in a 2nd gear pull is that after the initial surge you don’t get a power plateau or a soft mid-range, you get what feels like an instant surge that sustains.

Linear is not quite the right word for it. It feels more like the power is always present and available across that entire band rather than peaking and fading. The engine isn’t chasing the rev limit hoping to find more, it already has what it needs and it’s delivering it consistently.

For a 1.0 litre three-cylinder engine this is the most impressive part of the Quantum Red calibration. Small displacement engines typically have narrow power bands. This map effectively widens the usable range to the point where you stop thinking about gear selection and just drive.

20-80kmph — What It Actually Feels Like

Before the remap, 20-80kmph in 2nd gear felt like a task. The car was doing what you asked but you were aware of it working, a slight sense of strain, the engine note rising with effort, the acceleration building gradually.

After the Quantum Red map, 20-80 feels like a quick task without any pressure or load. That’s not marketing language, that’s the actual sensation. The overtake that previously required planning and commitment now happens with a casual 70% throttle input and is over before you’ve finished thinking about it.

The reduction in vibration compounds this feeling. Stock, the three-cylinder character was present, not unpleasant, but noticeable. Post-remap, throttle response is smoother and vibrations are lower in the power delivery range. The car doesn’t feel like it’s working harder to go faster. It feels like it was always capable of this and was previously being told not to.

The Fuel — XP 95 RON

This pull was on XP 95 RON, which is the fuel recommended for this setup. The Quantum Red map is calibrated to extract performance safely within the engine’s design tolerances, all components remain within their intended operating ranges despite the increased output.

The tradeoff with the performance map versus the economy map is honest and worth stating clearly: fuel economy is noticeably lower than stock. If economy was the primary goal the standard map would be the right choice. The Red map is for people who want the performance and accept the fuel cost. Daily driving 40-50km means that cost is real and consistent, not occasional.

For the performance delivered at 95 RON, the exchange rate is worth it.

If you’re on a different engine, the fuel requirement your tuner specifies is non-negotiable on a performance map. The octane rating isn’t a suggestion, it’s a calibration dependency.

Why 70% Throttle is the Most Important Data Point in This Article

Most remap articles show full-throttle results because full throttle is dramatic and photographs well in data logs. This article is built around a 70% throttle pull because that’s the pull that tells you what living with this remap is actually like.

Nobody drives at 100% throttle on a daily 40-50km commute. You drive at 60-80% throttle in the gaps between traffic, on the overtake, on the entry to a clear stretch. The question that matters for a daily driven remapped car is not what happens at maximum effort, it’s what happens at everyday effort.

At 70% throttle on the Quantum Red map, the 1.0 TSI delivers an experience that stock car cannot match at any throttle position. That’s the real finding of this pull test, and it’s the reason the remap has changed not just how fast this car goes but how enjoyable it is to drive every single day and every time I drive this car, it puts a smile on my face.

Stock vs Stage 1 Remap — Before and After Summary

The stock 1.0 TSI is genuinely good. 175Nm, competitive 0-100, enjoyable daily driver. This is not a story about a bad car being saved by a tune.

It’s a story about a good car being made noticeably better in the ways that matter on real roads. Smoother throttle response. Lower vibration in the power band. A torque delivery that feels effortless rather than worked. And a mid-range that holds boost from 2000 to 5000 RPM so that the car is available whenever you ask, not just at the top of the rev range.

The Quantum Red performance map doesn’t transform the car’s character, it amplifies it. The 1.0 TSI was always quick. Now it feels like it knows it.

Is a Stage 1 Remap the Right Choice for You

My experience is on a 1.0 TSI. Your car is different. But the decision framework is the same for any modern turbocharged engine.

Get a stage 1 remap if:

1. You’ve done the research on your tuner, map quality varies enormously and a cheap generic flash is not the same product as a properly calibrated map for your engine code
2. Your car feels sluggish in the mid-range, slow on overtakes, or like it’s working harder than it should, a stage 1 remap directly addresses all of this
3. You want real-world usability improvement, not just peak power numbers
4. Your car is mechanically healthy, worn plugs and degraded injectors get exposed by a performance map, not hidden by one
5. You’re on a modern turbocharged engine, naturally aspirated engines have significantly less to gain

Don’t get a stage 1 remap yet if:

1. Your car is due a service, get your car remap ready first
2. You exclusively drive slow urban routes where you rarely need to accelerate decisively — the map will be there but you won’t access it enough to feel the difference daily
3. You haven’t confirmed the correct fuel specification with your tuner, running lower octane than the map requires is the one area where cutting corners creates genuine risk

The one question that matters most before booking:

Is the tuner’s map generic or calibrated specifically for your engine code? A good tuner answers this without hesitation. One who rushes past it is telling you something important.

For the full picture of what a stage 1 remap experience looks like from booking to driving, including costs, the remap day itself, and what changed after, read the complete 1.0 TSI Stage 1 Remap Review.

Found this useful? Share it with someone considering a stage 1 remap.

A Quick Note

ECU remapping may be illegal in your region and can void your warranty, affect your insurance, and damage your engine if done incorrectly. Everything in this article is based on my personal experience only, I am not recommending or promoting remapping in any way.

You are solely responsible for checking local laws, informing your insurer, and choosing a qualified tuner. The author accepts no liability for any outcomes resulting from decisions made based on this content.

Do your own research. Make your own informed decision.
