P0137 Code Repair Cost: Causes, O2 Sensor Fix and VAG Diagnosis Guide

The P0137 code repair cost typically ranges from $150 to $300 to fix at an independent garage when the downstream O2 sensor needs replacing. If the fault is a wiring issue or exhaust leak, the repair can cost as little as $50 to $150. Only if the catalytic converter is genuinely damaged does the cost rise to $400 to $1,200 — but P0137 alone does not confirm converter failure.

The Check Engine Light that pops up unexpectedly causes vehicle owners to rush to part catalogues rather than get their vehicles diagnosed. If you have the P0137 code, this approach can prove to be hazardous since the code suggests the existence of a low voltage reading for the downstream oxygen sensor but not necessarily a faulty catalytic converter or oxygen sensor itself. This article covers everything about the P0137 code, Bank 1 Sensor 2 identification and testing.

What the P0137 Code Means

Fault code P0137 means your car’s engine computer (ECM/PCM) has detected a low-voltage signal from Bank 1 Sensor 2 for longer than it should. Specifically, Bank 1 Sensor 2 is the downstream oxygen sensor — so called because it sits after the catalytic converter rather than before it. Unlike the upstream sensor which actively controls your fuel mix, its primary job is simply to monitor how well the catalytic converter is working.
The term Bank 1 refers to the bank of cylinders in which cylinder one is mounted. However, there is no Bank 2 in single bank engines. This information helps avoid costly order errors.

What Does It Cost to Fix P0137 Code?

The most important number: P0137 alone does not mean your catalytic converter needs replacing. Diagnosing the actual fault first saves most people $300 to $900.

Which VAG Models Commonly Trigger P0137

P0137 appears across a wide range of VAG group vehicles, particularly those running smaller turbocharged petrol engines that are now common across the group:

• Skoda Rapid, Octavia, and Slavia with the 1.0 TSI or 1.5 TSI
• VW Polo, Golf, and Tiguan with the 1.0 TSI and 1.5 TSI
• SEAT Ibiza and Leon with the 1.0 TSI
• Audi A1 and A3 with the 1.0 TFSI and 1.5 TFSI

On all of these, Bank 1 Sensor 2 is the single downstream sensor mounted after the catalytic converter. Because these are all inline or three-cylinder engines with one bank, the fault location is always the same — the post-catalyst sensor.

Common Symptoms and What You Will Notice

The Check Engine Light is the most common symptom, and many cars still drive completely normally because the downstream O2 sensor is not the main sensor used for fuel control. Your car can feel fine while still failing an emissions test or leaving readiness monitors incomplete.

Some drivers notice a small drop in fuel economy. Some vehicles log related codes depending on the manufacturer. If you want to check any other stored codes, TheCarLane has an OBD2 fault code lookup tool that helps you place individual faults in a proper diagnostic sequence.

Is It Safe to Drive With P0137 Code?

Short-term driving is usually safe if the engine runs smoothly, the Check Engine Light is steady, and there is no exhaust smell. The real risk is not immediate engine damage — it is failing an emissions test, missing a wiring fault getting worse, or masking a developing exhaust leak. Stop driving immediately if the Check Engine Light starts flashing, you notice a misfire, or you smell raw fuel from the exhaust. Those symptoms mean an active problem that can destroy your catalytic converter within minutes, not weeks.

What Causes Low Voltage on the Downstream O2 Sensor

A worn or failed downstream O2 sensor is the most common cause, especially when age or contamination reduces signal quality over time. But low voltage can also come from:

• An open circuit in the wiring
• A short to ground
• A poor earth connection
• Heat-damaged wiring near the exhaust pipe
• An exhaust leak upstream of the sensor pulling extra oxygen into the exhaust stream

Engine problems like air leaks, fuel delivery faults, or misfires can also affect exhaust oxygen levels enough to make diagnosis confusing. Treat P0137 as a system clue, not a parts verdict.

Sensor vs Wiring vs Exhaust Leak: Quick Differentiators

Bad sensor: Shows a flatline reading or a signal that does not react when engine load changes.

Wiring fault: Appears and disappears intermittently, especially when the car moves or vibrates, because a loose pin or corroded connector changes the circuit path.

Exhaust leak: Leaves soot marks and produces a ticking noise near a joint or flange. When the downstream sensor reads lean but everything else looks normal, an exhaust leak becomes a stronger suspect than the sensor itself.

Step-by-Step Diagnosis (Do This Before Replacing Parts)

Step 1 — Scan and record Connect an OBD2 scanner and read all stored codes, pending codes, and freeze-frame data. Freeze-frame shows the exact conditions when the fault triggered — cold start or fully warm engine — which points you toward the likely cause before you touch anything.

Step 2 — Check live data With the engine running, watch Bank 1 Sensor 2 voltage at idle and at 2,000 to 2,500 RPM. A healthy downstream sensor shows slow, steady movement. A flatline below 0.1 volts that does not react to throttle is a strong sign the sensor or circuit has failed.

Step 3 — Inspect visually Check the connector and wiring harness near the exhaust for melted insulation, corroded pins, or soot marks around any joint or flange. Many P0137 faults are found here before any parts are needed.

Step 4 — Check the heater circuit Every O2 sensor has a small internal heater that warms it after a cold start. If the heater circuit has failed the sensor cannot produce a reliable signal regardless of its condition. Confirm heater circuit integrity before replacing the sensor.

Live Data: What Normal Downstream Voltage Looks Like

The upstream sensor (Sensor 1) switches rapidly as the engine computer adjusts fuelling. The downstream sensor (Sensor 2) should look much slower and steadier when the catalytic converter is working properly. A signal stuck below 0.1 volts is a strong warning sign — a healthy post-catalyst sensor should show some movement above that level, not a dead flatline.

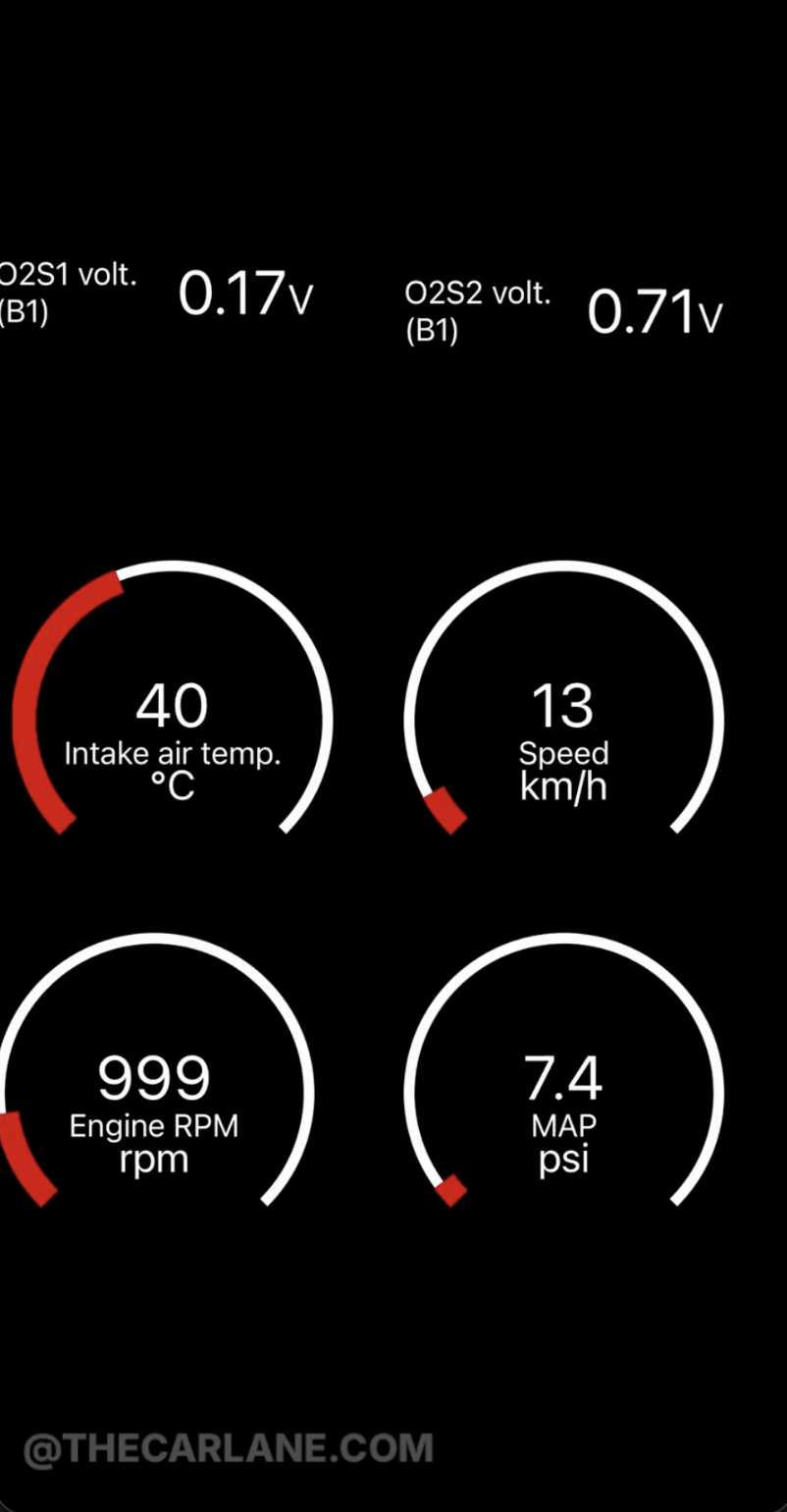

Below is a live Car Scanner reading from a healthy 1.0 TSI showing normal Bank 1 Sensor 2 behaviour at idle and during a throttle blip. Notice how the downstream voltage stays slow and steady rather than flatlining below 0.1 volts, which would indicate a fault.

Live Car Scanner reading — Bank 1 Sensor 2 voltage on a healthy 1.0 TSI at idle and during throttle blip

Simple Tests to Narrow It Down

Wiggle test: Gently move the wiring harness and connector while watching live data. If the voltage changes sharply when you move the wiring, the fault is in the circuit, not the exhaust stream.

Exhaust leak check: Listen for a ticking sound and look for soot marks around the exhaust manifold, flex pipe, and catalytic converter flange. A leak upstream of the sensor creates low-voltage readings that look exactly like sensor failure.

Avoid the Biggest Misdiagnosis: P0137 vs P0420

P0137 and P0420 both involve the post-catalyst monitoring system but mean very different things. P0137 is a low-voltage signal problem. P0420 means the catalytic converter’s efficiency has dropped below the acceptable level.

Confusing the two is an expensive mistake. A weak downstream sensor can make a healthy converter look like it is failing. A genuinely failing converter can create patterns that look like sensor failure. The only reliable separator is live data — the switching behaviour of the downstream sensor shows whether the problem is electrical or a true loss of catalyst performance.

If you are seeing both codes together, start with P0137 first. Resolving the signal fault often clarifies whether P0420 is a real catalyst issue or a false reading caused by an unreliable sensor.

TheCarLane Note: 1.0 TSI (3-Cylinder) Reality Check

On a 1.0 TSI three-cylinder engine there is only one bank, so P0137 always refers to Bank 1 Sensor 2 after the single catalytic converter. A useful pattern to know: a steady 0.1 to 0.2 volts at idle can be completely normal on this setup. But a flatline below 0.1 volts in Car Scanner that does not respond at all to throttle changes is more consistent with genuine sensor failure rather than a wiring or exhaust issue.

DIY vs Garage: Which Repairs Can You Do Yourself?

Fix Options and What Usually Solves It

Fix wiring and connector faults first. Visible harness damage, corroded pins, or a loose connector can create the exact low-voltage condition the engine computer is reporting — and these repairs cost far less than a new sensor.

Fix any exhaust leak before clearing codes. A leak upstream of the downstream sensor causes false low-voltage readings that return immediately after fitting a new sensor, making a brand new part look faulty.

Replace the downstream O2 sensor only after confirming the signal is genuinely faulty and not being pulled low by wiring, earth, or exhaust issues. For a full breakdown of parts and labour, see our cost of replacing an O2 sensor guide.

If the catalytic converter is genuinely degraded, fix the root cause first — oil burning or repeated misfires are the most common culprits — before replacing the converter. Fitting a new converter without fixing the underlying issue will damage the replacement early.

After the Repair: Clearing Codes and Verifying the Fix

Clear the codes, complete a proper drive cycle, and confirm no pending codes return. The repair is not verified until the system’s self-tests have run and passed under normal driving conditions — the absence of a Check Engine Light in the first few minutes does not confirm a fix.

After the drive cycle, recheck live data and look for stable downstream voltage. A repaired system should no longer show a persistent low flatline.

Common Mistakes That Waste Money

The single most expensive mistake is ordering a catalytic converter based on P0137 alone — this code does not confirm converter failure. A weak downstream sensor produces the exact same low-voltage reading as a failing cat, and the only way to tell them apart is live data.

The second most common mistake is replacing Sensor 1 instead of Sensor 2. Both are called O2 sensors but P0137 specifically points to the post-catalyst sensor. Confirm the location before ordering.

Always fix an exhaust leak before fitting a new sensor. A leak upstream of Bank 1 Sensor 2 pulls extra oxygen into the exhaust stream and triggers the exact same low-voltage code — a new sensor will not clear it.

Check the wiring and connector first. A corroded pin or loose connector costs under $15 to fix. Skipping this step and going straight to a new sensor is the most common way people spend $150 unnecessarily on P0137.

Key Takeaways

P0137 is a low-voltage signal fault at Bank 1 Sensor 2 — not automatic proof of catalytic converter failure. Diagnose the signal, the wiring, and the exhaust first before spending anything on parts.
